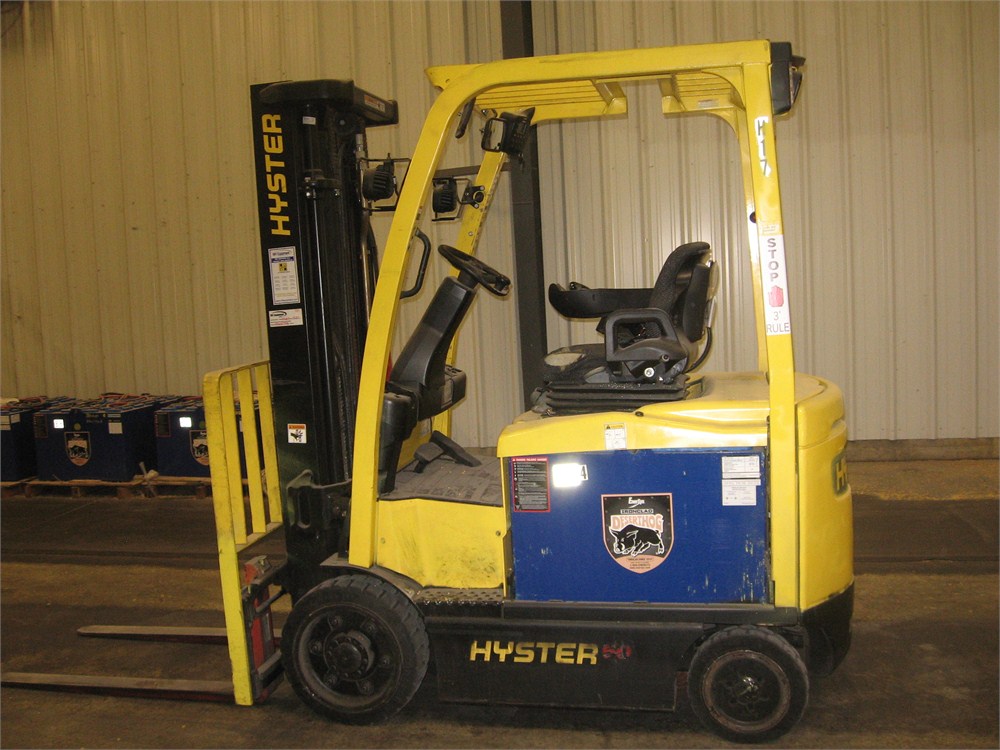

2010 Hyster E50XN (Unit # 11050)

Hours: 9,436

Serial: A268N03930H

Battery Serial: RII619913

***Comes with only Battery in the Lift and No Charger

Hyster Cushion Tire Electric Forklift Model E50XN, Nominal 5000 lb capacity at 24" load center. Hyster trucks feature low operating costs, superior ergonomics, greater dependability, and exceptional productivity. Standard Equipment Includes: AC Traction and Pump Motors, Transistor Drive and Pump Control, Advanced VSM (Vehicle System Manager), Progressive Thermal Management System, Fully Integrated CANbus Communication, On-Demand Power Steering, Continuous Stability Enhancement, Power Assist Braking, ADS (Auto Deceleration System) with Regenerative Braking, Multi-Functional Display (Battery State of Charge with Low Battery Lift Interrupt, Hour Meter, Performance Mode Indicator Fault Indicator (Audible & Visible), and 4 Operator Selectable, Programmable Performance Modes), Contoured Ingress / Egress Handle, Operator Convenience Station (Storage Areas, Beverage & Clipboard Holders, Infinitely Adjustable Tilt Steering Column, Anti-Cinch Operator Restraint System, Cushioned Floormat, Static Strap, Tow Pin, Seat Side Power Disconnect Button, On-Board Software (Password Protected, with Program, Test, & Diagnose Features), Electronic Horn, Operating Manual and Operator Presence System (OPS). Standard Warranty: 12 months / 2,000 Hours Full Truck 24 months / 4,000 Hours Powertrain (see Warranty Statement)
BATTERY COMPARTMENT: 39.1" (X) x 33.3" (Y) x 23.9" (Y) (993mm x 846mm x 607mm)
BATTERY REMOVAL: Lift out / vertical extraction.
VOLTAGE: 48V with Blue 350A Connector

PERFORMANCE: Standard Traction and Hydraulic Performance provide high traction and lift speeds with a balanced use of energy by utilizing the latest in AC motor and controller technology.
BATTERY CHARGING SYSTEM: Conventional battery charging arrangement. Includes a single battery connector.
CONSTRUCTION: Standard construction, suitable for environments with temperatures ranging from 32 F to 120 F.
U.L. APPROVAL: Type "E"
MAST: 3 Stage Full Free Lift Special Lift Heights in Approximately 6" Increments. 183" to 224"
(4650mm to 5700mm)
Allowed:206.50, Lowered Height:90.00, Free Lift 1-Ieight:72.50, Fork Thickness:1.50
CARRIAGE: 38.5" (980mm) Class II Hook Integral Sideshift
FORKS: 48" Long Class II Hook Type (1.6"x3.9") Standard Taper, (12201nm x 40mm x 100mm).
LOAD BACKREST EXTENSION: 48" High
MAST TILT: 10 Degrees Forward / 5 Degrees Back (Bottler's Tilt)
With out Return to Set Tilt
ACCUMULATOR: The 1 Quart HydraSmooth accumulator is designed to reduce hydraulic pressure spikes and reduce shock and vibration levels when handling loads with attachments or on rough / unimproved surfaces. Accumulators can help reduce product damage and contribute to more productive operators.
HYDRAULIC CONTROL & VALVE: 3 Function (1 Auxiliary) with 3 TouchPoint mini levers mounted to the seat armrest for fingertip control of hydraulic functions.
CLAMPING ATTACHMENT INTERLOCK: None. Not for use with clamping style attachments.
HOSE GROUP: 1 Auxiliary Function - 2 Hoses Internal Mounted
TREAD WIDTH: Standard tread with reduced truck capacity.
DRIVE TIRES: Standard Compound Lug Tread 21x7x15
STEER TIRES: Standard Compound Lug Tread 16x5x10.5
SEAT: Full Suspension Cloth Seat with weight & lumbar adjustment, operator restraint, no-cinch seatbelt, and 6" of seat travel for ultimate comfort.
OVERHEAD GUARD: 88.5" High (2248 mm) Grid Style
ENGINE START: Keyswitch Start
DIRECTIONAL CONTROL: Seat-Side
PARK BRAKE: Automatic parking brake is spring-applied and electrically released. During regular operation the park brake is applied when the truck is stationary and released when the accelerator pedal is depressed. Includes a manual release handle under the floorplate.
STEERING WHEEL: Steering Wheel with Wheel Spinner Knob STEERING COLUMN: Infinite tilt column through a 26 degree range

LIGHTS: Full LED Light Package includes 2 Front LED and 1 Rear LED Work Lights, with 2 LED Brake / Tail / Back-up Lights
VISIBLE ALARM: Amber LED Strobe Light, keyswitch activated, OHG Mounted - does not increase truck height (Low Mount)
AUDIBLE ALARM: Reverse direction activated.
POWER CONVERTER: Primary DC to DC converter provides 25 amps / 300 watts @ 12 volts for factory installed lights and accessories.
POWER CONVERTER: Auxiliary DC to DC converter provides 25 amps / 300 watts @ 12 volts for customer installed lights and accessories, Includes a dash-mounted, automotive-style auxiliary power outlet and power tap under the floor plate.
REAR DRIVE HANDLE: Rear Drive Handle improves driver comfort during reverse travel and includes an integral horn button for easy actuation during reverse driving.
MIRROR: Dual Sideview Mirrors (Left & Right OHG Side Mounted) FIRE EXTINGUISHER: 2.5 lb. Dry Chemical
IMPACT MONITOR: Immediately shuts down truck after an impact. Records truck impacts to promote driver caution, Disables truck until reset by Supervisor.
